OCE-SAC-9765

Electromagnetically shielded and fully customizable environments

IMMUNITY AND EMISSIONS TESTING COMPATIBLE WITH INTERNATIONAL STANDARDS

A fully compliant EMC test solution for 3.0 m distance testing. The OCE-SAC-9765 EMC chamber features optimized dimensions and is large enough to perform scans with an antenna 4 meters above the ground plane. The EMC chamber is designed for immunity and emissions testing, compatible with most international EMC compliance standards.

The Modirum Gespi anechoic chambers are supplied with a range of features, including:

Shielded door
Installed anechoic material (absorbers, ferrite panel, etc.)
Antennas
Access panels (RF, fiber optic)
Ventilation panel (air outlets)
Power filters
Additionally, it is possible to install gas passage piping (waveguide pipe) if required.

DOWNLOAD FULL BROCHURE

OCE-SAC-9765 Description

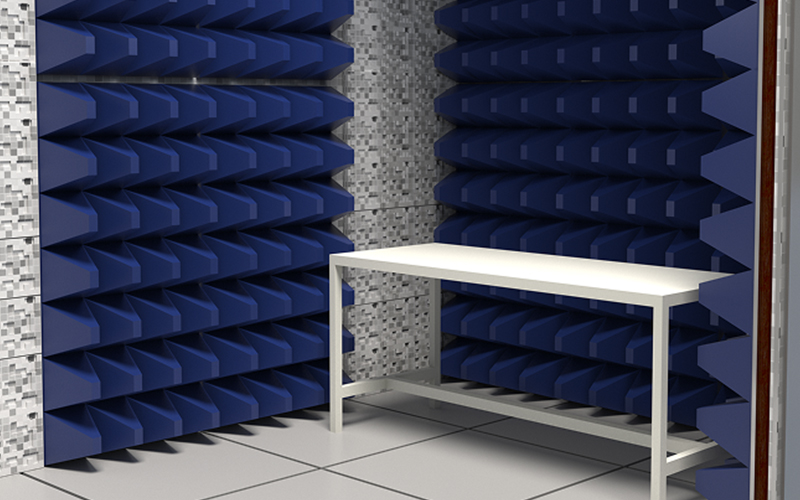

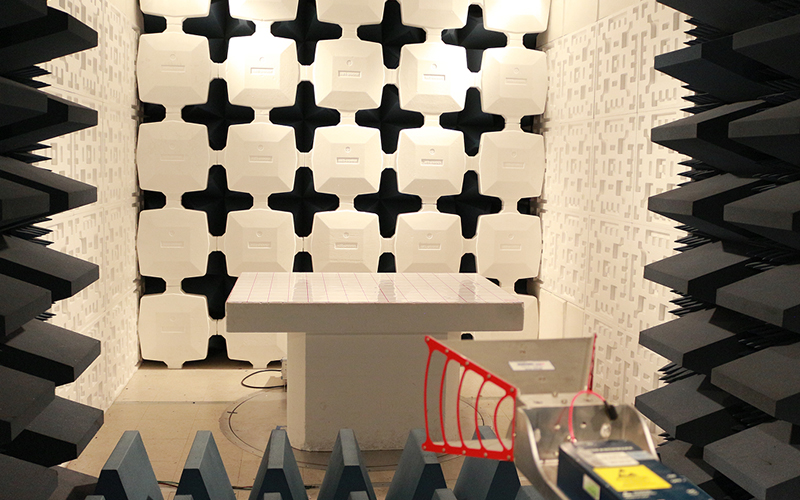

Anechoic chamber with optimized dimensions: 9.7 m × 6.5 m × 6.0 m (L × W × H)
Measuring distance: 3 m
Frequency range: 26 MHz to 18 GHz or 40 GHz
Shielded and fully equipped with absorbers and ferrite panels
Multiple interface options: RF, fiber optic, ventilation, power filters
Optional gas passage piping (waveguide)

Immunity and emissions testing of electronic and electrical devices
EMC certification tests aligned with CISPR, IEC/EN 61000-4-3, and MIL-STD-461
Pre-compliance and full compliance EMC validation
Aerospace, defense, telecom, automotive, and industrial applications

Compliance: fully aligned with international EMC standards (CISPR, IEC, MIL-STD)
Accuracy: optimized size and geometry for precise 3 m distance testing
Flexibility: supports wide frequency range up to 40 GHz
Integration: configurable with multiple interfaces and ventilation options
Scalability: adaptable design to meet different certification needs
