Lightning Generator LGP-4000WFA

FROM GROUND TO SKY: FULLY CUSTOMIZABLE LIGHTNING EFFECTS TESTING

LGP-4000WFA is a low noise impulse generator for lightning effects testing, that can be applied to aircrafts and/or samples, designed to generate Current Waveform A in accordance with ARP5412B.

It provides external impedance control facilitating the proper waveform calibration for metal and composite aircraft/samples structures.

LGP-4000WFA provides safety and flexibility for lightning impulse tests both outdoors and indoors.

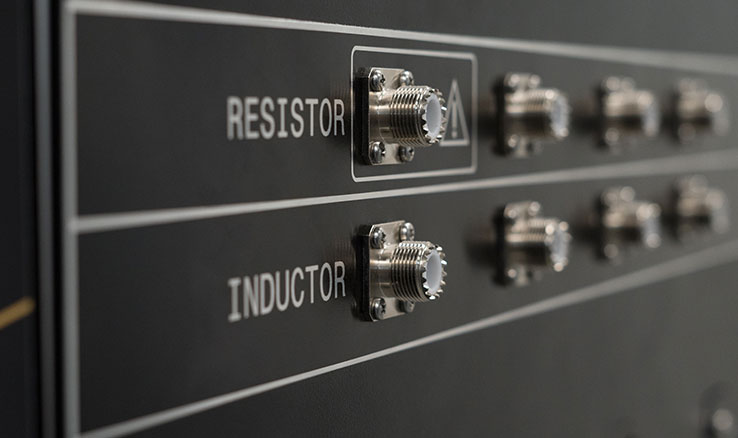

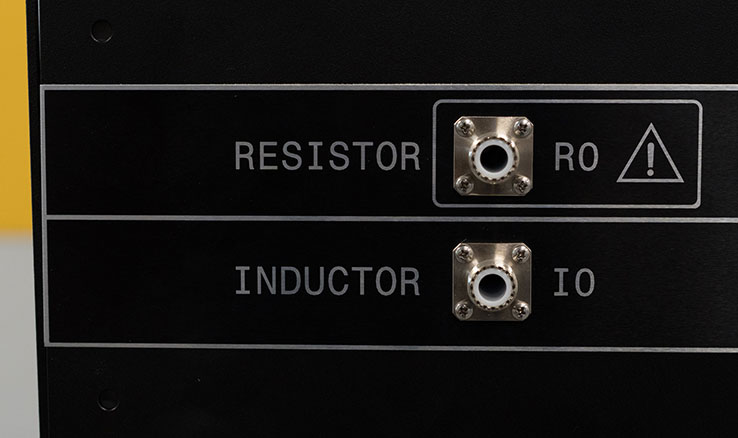

ADJUSTABLE IMPEDANCE

The generator can be calibrated for test devices with inductance up to 14 µH and resistance up to 10 Ω, guaranteeing time to peak and time to half-peak of Waveform A.

OTHER WAVEFORMS

Modirum Gespi, with extensive experience in producing surge generators, can create devices that adhere to various waveforms specified in major standards (ARP5412, DO-160, MIL-STD-461, IEC 61000-4-5) and offers customized waveform solutions on demand.
